PAW3203DI - WIRELESS OPTICAL MOUSE SINGLE CHIP

Name: PAW3203DI
SKU: PAW3203DI-914608

PixArt

📥 Download Datasheet

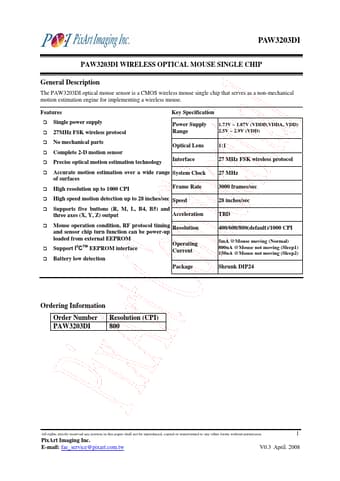

PAW3203DI Datasheet Preview — Preview of PAW3203DI PDF

Datasheet Details

Part number	PAW3203DI
Manufacturer	PixArt
File Size	265.56 KB
Description	WIRELESS OPTICAL MOUSE SINGLE CHIP
Datasheet	PAW3203DI-PixArt.pdf

PAW3203DI Product details

Description

The PAW3203DI optical mouse sensor is a CMOS wireless mouse single chip that serves as a non-mechanical motion estimation engine for implementing a wireless mouse.

Features

Key Specification Single power supply 27MHz FSK wireless protocol Power Supply Range 1.73V ~ 1.87V (VDDD,VDDA, VDD) 2.5V ~ 2.9V (VDD) No mechanical parts Complete 2-D motion sensor Precise optical motion estimation technology Optical Lens Interface 1:1 27 MHz FSK wireless protocol Accurate motion estimation over a wide range System Clock of surfaces High resolution up to 1000 CPI Frame Rate 27 MHz 3000 frames/sec High speed motion detection up to 28 inches/sec Speed.
