PAW3204DB - LOW COST WIRELESS MOUSE SENSOR

Name: PAW3204DB
SKU: PAW3204DB-929209

PixArt

📥 Download Datasheet

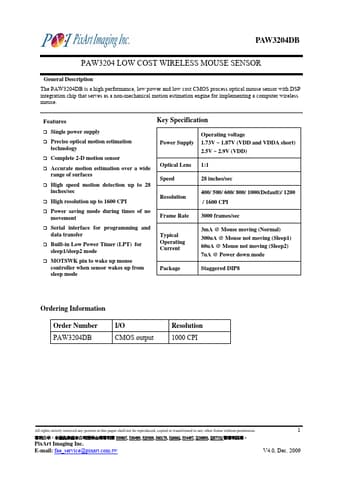

PAW3204DB Datasheet Preview — Preview of PAW3204DB PDF

Datasheet Details

Part number	PAW3204DB
Manufacturer	PixArt
File Size	355.24 KB
Description	LOW COST WIRELESS MOUSE SENSOR
Datasheet	PAW3204DB-PixArt.pdf

PAW3204DB Product details

Description

The PAW3204DB is a high performance, low power and low cost CMOS process optical mouse sensor with DSP integration chip that serves as a non-mechanical motion estimation engine for implementing a computer wireless mouse.

Features

Key Specification Single power supply Precise optical motion estimation technology Complete 2-D motion sensor Accurate motion estimation over a wide range of surfaces High speed motion detection up to 28 inches/sec High resolution up to 1600 CPI Power Supply Operating voltage 1.73V ~ 1.87V (VDD and VDDA short) 2.5V ~ 2.9V (VDD) Optical Lens 1:1 Speed 28 inches/sec Resolution 400/ 500/ 600/ 800/ 1000(Default)/ 1200 / 1600 CPI Power saving mode during times of no movement.
