PAW3204DB-TJDM - LITTLE LOW POWER WIRELESS MOUSE SENSOR

PixArt

📥 Download Datasheet

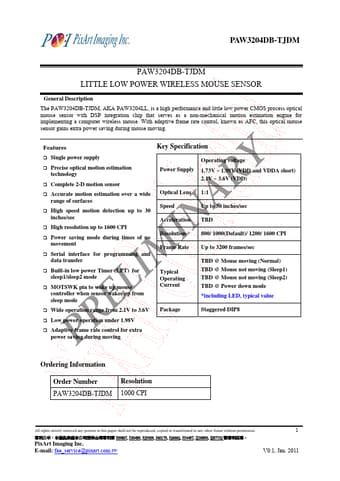

PAW3204DB-TJDM Datasheet Preview — Preview of PAW3204DB-TJDM PDF

Datasheet Details

Part number	PAW3204DB-TJDM
Manufacturer	PixArt
File Size	594.57 KB
Description	LITTLE LOW POWER WIRELESS MOUSE SENSOR
Datasheet	PAW3204DB-TJDM-PixArt.pdf

PAW3204DB-TJDM Product details

Description

The PAW3204DB-TJDM, AKA PAW3204LL, is a high performance and little low power CMOS process optical mouse sensor with DSP integration chip that serves as a non-mechanical motion estimation engine for implementing a computer wireless mouse.

Features

Key Specification Single power supply Precise optical motion estimation technology Complete 2-D motion sensor Accurate motion estimation over a wide range of surfaces High speed motion detection up to 30 inches/sec High resolution up to 1600 CPI Power saving mode during times of no movement Serial interface for programming and data transfer Built-in low power Timer (LPT) for sleep1/sleep2 mode MOTSWK pin to wake up mouse controller when sensor wakes up from sleep mode Powe.
