PAW3204DB-TJDE - LOW POWER WIRELESS MOUSE SENSOR

Name: PAW3204DB-TJDE
SKU: PAW3204DB-TJDE-1079313

PixArt

📥 Download Datasheet

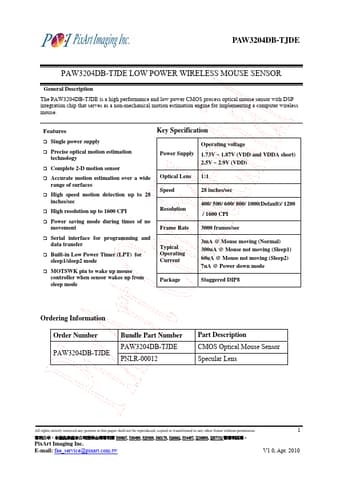

PAW3204DB-TJDE Datasheet Preview — Preview of PAW3204DB-TJDE PDF

Datasheet Details

Part number	PAW3204DB-TJDE
Manufacturer	PixArt
File Size	904.29 KB
Description	LOW POWER WIRELESS MOUSE SENSOR
Datasheet	PAW3204DB-TJDE-PixArt.pdf

PAW3204DB-TJDE Product details

Description

The PAW3204DB-TJDE is a high performance and low power CMOS process optical mouse sensor with DSP integration chip that serves as a non-mechanical motion estimation engine for implementing a computer wireless mouse.

Features

Key Specification Single power supply Precise optical motion estimation technology Complete 2-D motion sensor Accurate motion estimation over a wide range of surfaces High speed motion detection up to 28 inches/sec High resolution up to 1600 CPI Power saving mode during times of no movement Power Supply Operating voltage 1.73V ~ 1.87V (VDD and VDDA short) 2.5V ~ 2.9V (VDD) Optical Lens 1:1 Speed 28 inches/sec Resolution 400/ 500/ 600/ 800/ 1000(Default)/ 1200 / 1600 CPI F.
