PCS3P2537A - Peak EMI Reduction IC

Name: PCS3P2537A
SKU: PCS3P2537A-690483

ON Semiconductor

📥 Download Datasheet

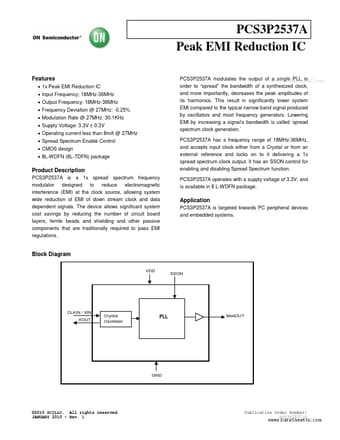

PCS3P2537A Datasheet Preview — Preview of PCS3P2537A PDF

Datasheet Details

Part number	PCS3P2537A
Manufacturer	ON Semiconductor
File Size	154.88 KB
Description	Peak EMI Reduction IC
Datasheet	PCS3P2537A_ONSemiconductor.pdf

PCS3P2537A Product details

Description

PCS3P2537A is a 1x spread spectrum frequency modulator designed to reduce electromagnetic interference (EMI) at the clock source, allowing system wide reduction of EMI of down stream clock and data dependent signals.

Features

1x Peak EMI Reduction IC.
Input Frequency: 18MHz-36MHz.
Output Frequency: 18MHz-36MHz.
Frequency Deviation @ 27MHz: -0.25%.
Modulation Rate @ 27MHz: 30.1KHz.
Supply Voltage: 3.3V ± 0.3V.
Operating current less than 8mA @ 27MHz.
Spread Spectrum Enable Control.
CMOS design.
8L-WDFN (8L-TDFN) package PCS3P2537A modulates the output of www. DataSheet4U. com a single PLL in order to “spread” the bandwidth of a sy.
