PCS3P2005A - General Purpose Peak EMI Reduction IC

ON Semiconductor

📥 Download Datasheet

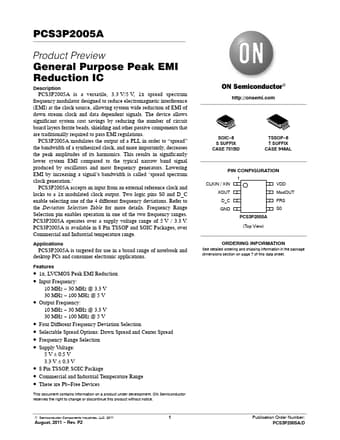

PCS3P2005A Datasheet Preview — Preview of PCS3P2005A PDF

Datasheet Details

Part number	PCS3P2005A
Manufacturer	ON Semiconductor
File Size	120.04 KB
Description	General Purpose Peak EMI Reduction IC
Datasheet	PCS3P2005A-ONSemiconductor.pdf

PCS3P2005A Product details

Description

PCS3P2005A is a versatile, 3.3 V/5 V, 1x spread spectrum frequency modulator designed to reduce electromagnetic interference (EMI) at the clock source, allowing system wide reduction of EMI of down stream clock and data dependent signals.The device allows significant system cost savings by reducing the number of circuit board layers ferrite beads, shielding and other passive components that are traditionally required to pass EMI regulations.PCS3P2005A modulates the output of a PLL in order to

Features

1x, LVCMOS Peak EMI Reduction.
Input Frequency: 10 MHz.
30 MHz @ 3.3 V 30 MHz.
100 MHz @ 5 V.
Output Frequency: 10 MHz.
30 MHz @ 3.3 V 30 MHz.
100 MHz @ 5 V.
Four Different Frequency Deviation Selection.
Selectable Spread Options: Down Spread and Center Spread.
Frequency Range Selection.
Supply Voltage: 5 V ± 0.5 V 3.3 V ± 0.3 V.
8 Pin TSSOP, SOIC Package.
Commercial and Industri.
