PCS3P2537A - Low Power Peak EMI Reduction IC

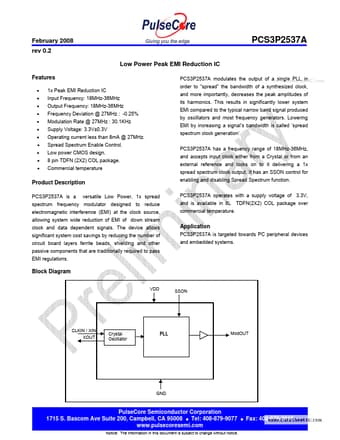

PCS3P2537A Datasheet Preview — Preview of PCS3P2537A PDF

Datasheet Details

Part number	PCS3P2537A
Manufacturer	PulseCore Semiconductor
File Size	300.85 KB
Description	Low Power Peak EMI Reduction IC
Datasheet	PCS3P2537A_PulseCoreSemiconductor.pdf

PCS3P2537A Product details

Description

PCS3P2537A is a versatile Low Power, 1x spread spectrum frequency modulator designed to reduce electromagnetic interference (EMI) at the clock source, allowing system wide reduction of EMI of down stream clock and data dependent signals.The device allows significant system cost savings by reducing the number of circuit board layers ferrite beads, shielding and other passive components that are traditionally required to pass EMI regulations.Application PCS3P2537A is targeted towards PC periph

Features

1x Peak EMI Reduction IC Input Frequency: 18MHz-36MHz Output Frequency: 18MHz-36MHz Frequency Deviation @ 27MHz : -0.25% Modulation Rate @ 27MHz : 30.1KHz Supply Voltage: 3.3V±0.3V Operating current less than 8mA @ 27MHz. Spread Spectrum Enable Control. Low power CMOS design. 8 pin TDFN (2X2) COL package. Commercial temperature PCS3P2537A PCS3P2537A modulates the output of www. DataShee.
