PCS3P2189A - Spread Spectrum Clock Generator

PCS3P2189A Datasheet Preview — Preview of PCS3P2189A PDF

Datasheet Details

Part number	PCS3P2189A
Manufacturer	PulseCore Semiconductor
File Size	344.24 KB
Description	Spread Spectrum Clock Generator
Datasheet	PCS3P2189A_PulseCoreSemiconductor.pdf

PCS3P2189A Product details

Description

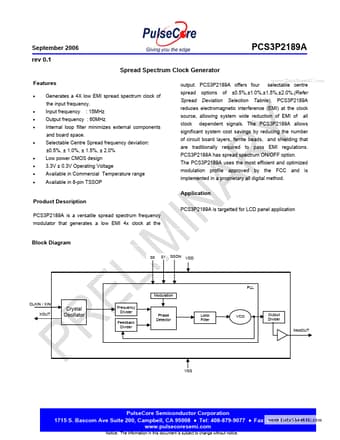

PCS3P2189A is targetted for LCD panel application PCS3P2189A is a versatile spread spectrum frequency modulator that generates a low EMI 4x clock at the Block Diagram S0 S1 SSON VDD PLL Modulation CLKIN / XIN XOUT Crystal Oscillator Frequency Divider Feedback Divider Phase Detector Loop Filter VCO Output Divider ModOUT VSS PulseCore Semiconductor Corporation 1715 S.Bascom Ave Suite 200, Campbell, CA 95008 Tel: 408-879-9077 Fax: 408-879-9018 www.pulsecoresemi.com No

Features

PCS3P2189A output. PCS3P2189A offers four spread Spread options of Deviation Selection www. DataSheet4U. com selectable centre PCS3P2189A all Generates a 4X low EMI spread spectrum clock of the input frequency. Input frequency : 15MHz Output frequency : 60MHz Internal loop filter minimizes external components and board space. Selectable Centre Spread frequency deviation: ±0.5%, ± 1.0%, ± 1.5%, ± 2.0% Low.
