FAN6390MPX - Highly Integrated SecondarySide Adaptive USB Type-C Charging Controller

Name: FAN6390MPX
SKU: FAN6390MPX-1486148

ON Semiconductor

The FAN6390MPX by ON Semiconductor is a Highly Integrated SecondarySide Adaptive USB Type-C Charging Controller. Below is the official datasheet preview.

📥 Download Datasheet

FAN6390MPX Highly Integrated SecondarySide Adaptive USB Type-C Charging Controller by ON Semiconductor - Datasheet Preview — Official preview page of the **FAN6390MPX** Highly Integrated SecondarySide Adaptive USB Type-C Charging Controller datasheet (ON Semiconductor).

Datasheet Details

Part number	FAN6390MPX
Manufacturer	ON Semiconductor
File Size	632.39 KB
Description	Highly Integrated SecondarySide Adaptive USB Type-C Charging Controller
Datasheet	FAN6390MPX-ONSemiconductor.pdf

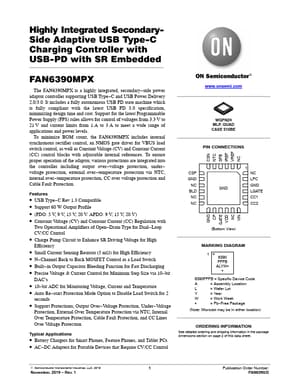

Additional preview pages of the FAN6390MPX datasheet.

FAN6390MPX Product details

Features

USB Type.
C Rev 1.3 Compatible.
Support 60 W Output Profile.
(PDO: 5 V, 9 V, 15 V, 20 V. APDO: 9 V, 15 V, 20 V).
Constant Voltage (CV) and Constant Current (CC) Regulation with Two Operational Amplifiers of Open.
Drain Type for Dual.
Loop CV/CC Control.
Charge Pump Circuit to Enhance SR Driving Voltage for High Efficiency.
Small Current Sensing Resistor (5 mW) for High Efficiency.
N.
Channel Back to Back.
