FAN604P - Offline Quasi-Resonant PWM Controller

ON Semiconductor

The FAN604P by ON Semiconductor is a Offline Quasi-Resonant PWM Controller. Below is the official datasheet preview.

📥 Download Datasheet

FAN604P Offline Quasi-Resonant PWM Controller by ON Semiconductor - Datasheet Preview — Official preview page of the **FAN604P** Offline Quasi-Resonant PWM Controller datasheet (ON Semiconductor).

Datasheet Details

Part number	FAN604P
Manufacturer	ON Semiconductor
File Size	443.97 KB
Description	Offline Quasi-Resonant PWM Controller
Datasheet	FAN604P-ONSemiconductor.pdf
Additional preview pages of the FAN604P datasheet.

FAN604P Product details

Description

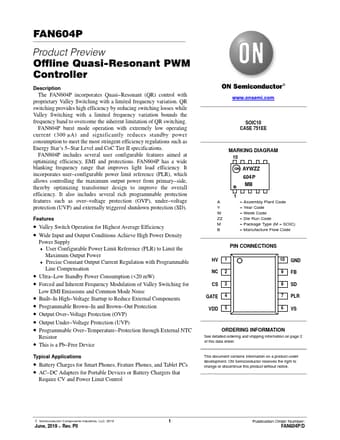

The FAN604P incorporates Quasi Resonant (QR) control with proprietary Valley Switching with a limited frequency variation.QR switching provides high efficiency by reducing switching losses while Valley Switching with a limited frequency variation bounds the frequency band to overcome the inherent limitation of QR switching.FAN604P burst mode operation with extremely low operating current (300 mA) and significantly reduces standby power consumption to meet the most stringent efficiency

Features

aimed at optimizing efficiency, EMI and protections. FAN604P has a wide blanking frequency range that improves light load efficiency. It incorporates user.
configurable power limit reference (PLR), which allows controlling the maximum output power from primary.
side, thereby optimizing transformer design to improve the overall efficiency. It also includes several rich programmable protection features such as over.
voltage protection (OVP), under.
voltage protection (U.
