FAN6100M - Secondary-Side Constant Voltage and Constant Current Controller Compatible

Name: FAN6100M
SKU: FAN6100M-1311576

Fairchild Semiconductor

The FAN6100M by Fairchild Semiconductor is a Secondary-Side Constant Voltage and Constant Current Controller Compatible. Below is the official datasheet preview.

📥 Download Datasheet

FAN6100M Secondary-Side Constant Voltage and Constant Current Controller Compatible by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FAN6100M** Secondary-Side Constant Voltage and Constant Current Controller Compatible datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FAN6100M
Manufacturer	Fairchild Semiconductor
File Size	1.39 MB
Description	Secondary-Side Constant Voltage and Constant Current Controller Compatible
Datasheet	FAN6100M-FairchildSemiconductor.pdf

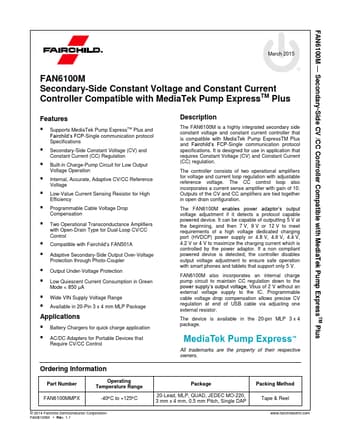

Additional preview pages of the FAN6100M datasheet.

FAN6100M Product details

Features

Supports MediaTek Pump ExpressTM Plus and Fairchild’s FCP-Single communication protocol Specifications.
Secondary-Side Constant Voltage (CV) and Constant Current (CC) Regulation.
Built-in Charge-Pump Circuit for Low Output Voltage Operation.
Internal, Accurate, Adaptive CV/CC Reference Voltage.
Low-Value Current Sensing Resistor for High Efficiency.
Programmable Cable Voltage Drop Compensation.
Two Operational Transconductance Amplifiers with Open-Drain Type f.
