FAN6100Q - Secondary-Side Constant Voltage and Constant Current Controller Compatible

Name: FAN6100Q
SKU: FAN6100Q-1311575

Fairchild Semiconductor

The FAN6100Q by Fairchild Semiconductor is a Secondary-Side Constant Voltage and Constant Current Controller Compatible. Below is the official datasheet preview.

📥 Download Datasheet

FAN6100Q Secondary-Side Constant Voltage and Constant Current Controller Compatible by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FAN6100Q** Secondary-Side Constant Voltage and Constant Current Controller Compatible datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FAN6100Q
Manufacturer	Fairchild Semiconductor
File Size	1.30 MB
Description	Secondary-Side Constant Voltage and Constant Current Controller Compatible
Datasheet	FAN6100Q-FairchildSemiconductor.pdf

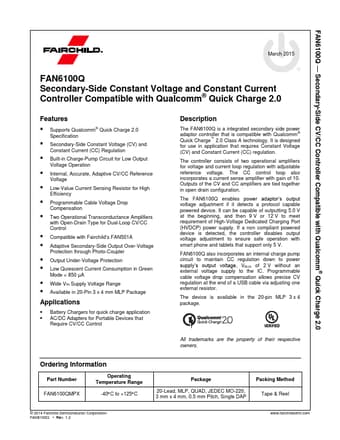

Additional preview pages of the FAN6100Q datasheet.

FAN6100Q Product details

Features

Supports Qualcomm® Quick Charge 2.0 Specification.
Secondary-Side Constant Voltage (CV) and Constant Current (CC) Regulation.
Built-in Charge-Pump Circuit for Low Output Voltage Operation.
Internal, Accurate, Adaptive CV/CC Reference Voltage.
Low-Value Current Sensing Resistor for High Efficiency.
Programmable Cable Voltage Drop Compensation.
Two Operational Transconductance Amplifiers with Open-Drain Type for Dual-Loop CV/CC Control.
Compatible with Fair.
