FAN6100HM - Secondary-Side Constant Voltage and Constant Current Controller Compatible

Name: FAN6100HM
SKU: FAN6100HM-1311577

Fairchild Semiconductor

The FAN6100HM by Fairchild Semiconductor is a Secondary-Side Constant Voltage and Constant Current Controller Compatible. Below is the official datasheet preview.

📥 Download Datasheet

FAN6100HM Secondary-Side Constant Voltage and Constant Current Controller Compatible by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FAN6100HM** Secondary-Side Constant Voltage and Constant Current Controller Compatible datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FAN6100HM
Manufacturer	Fairchild Semiconductor
File Size	0.96 MB
Description	Secondary-Side Constant Voltage and Constant Current Controller Compatible
Datasheet	FAN6100HM-FairchildSemiconductor.pdf

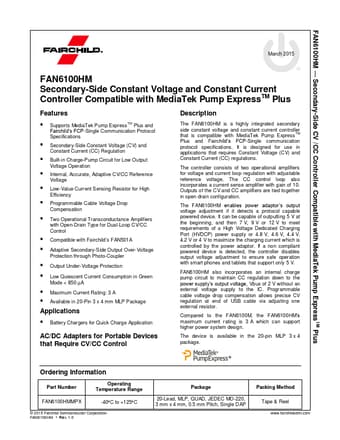

Additional preview pages of the FAN6100HM datasheet.

FAN6100HM Product details

Features

Supports MediaTek Pump ExpressTM Plus and Fairchild’s FCP-Single Communication Protocol Specifications.
Secondary-Side Constant Voltage (CV) and Constant Current (CC) Regulation.
Built-in Charge-Pump Circuit for Low Output Voltage Operation.
Internal, Accurate, Adaptive CV/CC Reference Voltage.
Low-Value Current Sensing Resistor for High Efficiency.
Programmable Cable Voltage Drop Compensation.
Two Operational Transconductance Amplifiers with Open-Drain Type f.
