DS3885 - BTL Arbitration Transceiver

National Semiconductor

📥 Download Datasheet

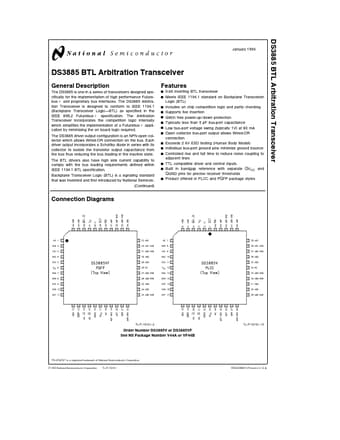

DS3885 Datasheet Preview — Preview of DS3885 PDF

Datasheet Details

Part number	DS3885
Manufacturer	National Semiconductor
File Size	200.83 KB
Description	BTL Arbitration Transceiver
Datasheet	DS3885_NationalSemiconductor.pdf

DS3885 Product details

Description

The DS3885 is one in a series of transceivers designed specifically for the implementation of high performance Futurebus a and proprietary bus interfaces The DS3885 Arbitration Transceiver is designed to conform to IEEE 1194 1 (Backplane Transceiver Logic BTL) as specified in the IEEE 896 2 Futurebus a specification The Arbitration Transceiver incorporates the competition logic internally which simplifies the implementation of a Futurebus a application by minimizing the on board logic required T

Features

Y Y Y Y Y Y Y Y Y Y Y Y Y Y 9-bit inverting BTL transceiver Meets IEEE 1194 1 standard on Backplane Transceiver Logic (BTL) Includes on chip competition logic and parity checking Supports live insertion Glitch free power-up down protection Typically less than 5 pF bus-port capacitance Low bus-port voltage swing (typically 1V) at 80 mA Open collector bus-port output allows Wired-OR connection Exceeds 2 kV ESD testing (Human Body Model) Individual bus-port ground pins minimize ground bounce C.
