DS3890 - (DS3890 / DS3892) Octal Trapezoidal Driver / Octal TRI-STATE Receiver

National Semiconductor

📥 Download Datasheet

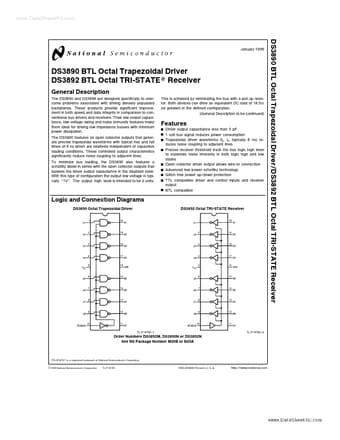

DS3890 Datasheet Preview — Preview of DS3890 PDF

Datasheet Details

Part number	DS3890
Manufacturer	National Semiconductor
File Size	168.21 KB
Description	(DS3890 / DS3892) Octal Trapezoidal Driver / Octal TRI-STATE Receiver
Datasheet	DS3890_NationalSemiconductor.pdf

DS3890 Product details

Description

The DS3890 and DS3898 are designed specifically to overcome problems associated with driving densely populated backplanes These products provide significant improvement in both speed and data integrity in comparison to conventional bus drivers and receivers Their low output capacitance low voltage swing and noise immunity

Features

make them ideal for driving low impedance busses with minimum power dissipation The DS3890 features an open collector outputs that generate precise trapezoidal waveforms with typical rise and fall times of 6 ns which are relatively independent of capacitive loading conditions These controlled output characteristics significantly reduce noise coupling to adjacent lines To minimize bus loading the DS3890 also features a schottky diode in series with the open collector outputs that isolates the dri.
