DS3897 - BTL Trapezoidal Transceivers

Name: DS3897
SKU: DS3897-216462

National Semiconductor

📥 Download Datasheet

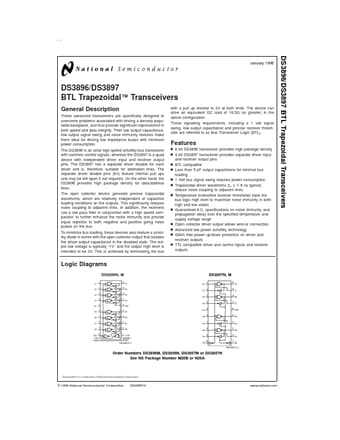

DS3897 Datasheet Preview — Preview of DS3897 PDF

Datasheet Details

Part number	DS3897
Manufacturer	National Semiconductor
File Size	247.91 KB
Description	BTL Trapezoidal Transceivers
Datasheet	DS3897_NationalSemiconductor.pdf

DS3897 Product details

Description

These advanced transceivers are specifically designed to overcome problems associated with driving a densely populated backplane, and thus provide significant improvement in both speed and data integrity.

Features

make them ideal for driving low impedance buses with minimum power consumption. The DS3896 is an octal high speed schottky bus transceiver with common control signals, whereas the DS3897 is a quad device with independent driver input and receiver output pins. The DS3897 has a separate driver disable for each driver and is, therefore, suitable for arbitration lines. The separate driver disable pins (En) feature internal pull ups and may be left open if not required. On the other hand, the DS3896.
