DS3896 - BTL Trapezoidal Transceivers

Name: DS3896
SKU: DS3896-216459

National Semiconductor

📥 Download Datasheet

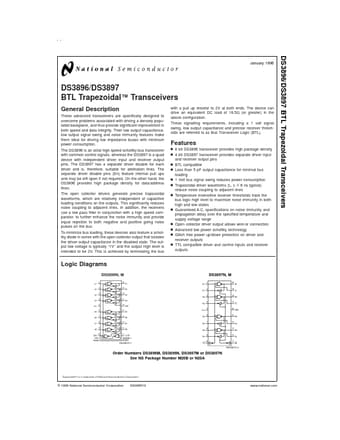

DS3896 Datasheet Preview — Preview of DS3896 PDF

Datasheet Details

Part number	DS3896
Manufacturer	National Semiconductor
File Size	247.91 KB
Description	BTL Trapezoidal Transceivers
Datasheet	DS3896_NationalSemiconductor.pdf

DS3896 Product details

Description

These advanced transceivers are specifically designed to overcome problems associated with driving a densely populated backplane, and thus provide significant improvement in both speed and data integrity.

Features

make them ideal for driving low impedance buses with minimum power consumption. The DS3896 is an octal high speed schottky bus transceiver with common control signals, whereas the DS3897 is a quad device with independent driver input and receiver output pins. The DS3897 has a separate driver disable for each driver and is, therefore, suitable for arbitration lines. The separate driver disable pins (En) feature internal pull ups and may be left open if not required. On the other hand, the DS3896.
