DS3802 - Advanced NV SRAM Battery

Name: DS3802
SKU: DS3802-602568

Dallas Semiconductor

📥 Download Datasheet

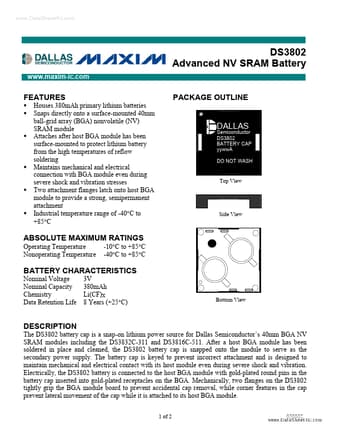

DS3802 Datasheet Preview — Preview of DS3802 PDF

Datasheet Details

Part number	DS3802
Manufacturer	Dallas Semiconductor
File Size	126.97 KB
Description	Advanced NV SRAM Battery
Datasheet	DS3802_DallasSemiconductor.pdf

DS3802 Product details

Description

The DS3802 battery cap is a snap-on lithium power source for Dallas Semiconductor’s 40mm BGA NV SRAM modules including the DS3832C-311 and DS3816C-511.

Features

Houses 380mAh primary lithium batteries Snaps directly onto a surface-mounted 40mm ball-grid array (BGA) nonvolatile (NV) SRAM module Attaches after host BGA module has been surface-mounted to protect lithium battery from the high temperatures of reflow soldering Maintains mechanical and electrical connection with BGA module even during severe shock and vibration stresses Two attachment flanges latch onto host BGA module to provide a strong, semipermanent attachment Industrial.
