NT5SV64M4AT

The NT5SV64M4AT is (NT5SVxxMxxAT) Synchronous DRAM designed by Nanya.

Product Overview

Nanya

Datasheet Details

Part number	NT5SV64M4AT, NT5SV16M16AT
Manufacturer	Nanya
File Size	840.91 KB
Description	(NT5SVxxMxxAT) Synchronous DRAM
Datasheet	NT5SV16M16AT_Nanya.pdf
Note	This datasheet PDF includes multiple part numbers: NT5SV64M4AT, NT5SV16M16AT. Please refer to the document for exact specifications by model.

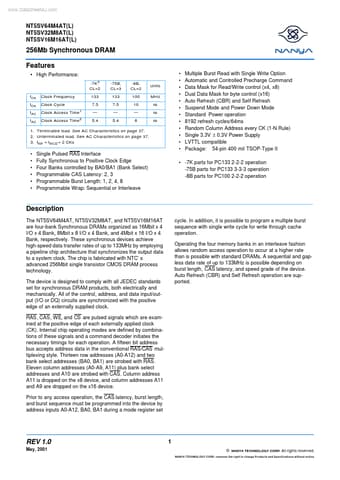

Additional preview pages of the NT5SV64M4AT datasheet.

Product details

Description

The NT5SV64M4AT, NT5SV32M8AT, and NT5SV16M16AT are four-bank Synchronous DRAMs organized as 16Mbit x 4 I/O x 4 Bank, 8Mbit x 8 I/O x 4 Bank, and 4Mbit x 16 I/O x 4 Bank, respectively.

Features

High Performance: -7K 3 CL=2 fCK tCK tAC tAC Clock Frequency Clock Cycle Clock Access Time 1 133 7.5.
5.4 -75B, CL=3 133 7.5.
5.4 -8B, CL=2 100 10.
6 Units MHz ns ns ns Clock Access Time 2 1. Terminated load. See AC Characteristics on page 37. 2. Unterminated load. See AC Characteristics on page 37. 3. tRP = tRCD = 2 CKs.
Multiple Burst R.
