NT5SV16M4DT - (NT5SVxxMxxDT) 64Mb Synchronous DRAM

NANYA

The NT5SV16M4DT by NANYA is a (NT5SVxxMxxDT) 64Mb Synchronous DRAM. Below is the official datasheet preview.

📥 Download Datasheet

NT5SV16M4DT (NT5SVxxMxxDT) 64Mb Synchronous DRAM by NANYA - Datasheet Preview — Official preview page of the **NT5SV16M4DT** (NT5SVxxMxxDT) 64Mb Synchronous DRAM datasheet (NANYA).

Datasheet Details

Part number	NT5SV16M4DT
Manufacturer	NANYA
File Size	258.66 KB
Description	(NT5SVxxMxxDT) 64Mb Synchronous DRAM
Datasheet	NT5SV16M4DT_NANYA.pdf

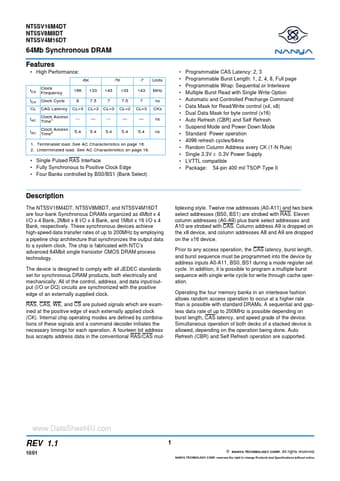

Additional preview pages of the NT5SV16M4DT datasheet.

NT5SV16M4DT Product details

Description

The NT5SV16M4DT, NT5SV8M8DT, and NT5SV4M16DT are four-bank Synchronous DRAMs organized as 4Mbit x 4 I/O x 4 Bank, 2Mbit x 8 I/O x 4 Bank, and 1Mbit x 16 I/O x 4 Bank, respectively.

Features

High Performance: -6K fCK tCK CL tAC tAC Clock Frequency Clock Cycle CAS Latency Clock Access Time1 Clock Access Time2 166 6 133 7.5 143 7 -7K 133 7.5 CL=2.
5.4 -7 143 7 CL=3.
5.4 Units MHz ns CKs ns ns CL=3 CL=2 CL=3 --5.4.
5.4 --5.4 1. Terminated load. See AC Characteristics on page 16. 2. Unterminated load. See AC Characteristics on page 16.
Single Pulsed RAS Interface.
Fully Synchronous to Positive Clock Edge.
Four Banks con.
