NT5SV32M8AT - (NT5SVxxMxxAT) Synchronous DRAM

Download the NT5SV32M8AT datasheet PDF. This datasheet also covers the NT5SV16M16AT variant, as both devices belong to the same (nt5svxxmxxat) synchronous dram family and are provided as variant models within a single manufacturer datasheet.

Description

The NT5SV64M4AT, NT5SV32M8AT, and NT5SV16M16AT are four-bank Synchronous DRAMs organized as 16Mbit x 4 I/O x 4 Bank, 8Mbit x 8 I/O x 4 Bank, and 4Mbit x 16 I/O x 4 Bank, respectively.

Features

  • High Performance: -7K 3 CL=2 fCK tCK tAC tAC Clock Frequency Clock Cycle Clock Access Time 1 133 7.5.
  • 5.4 -75B, CL=3 133 7.5.
  • 5.4 -8B, CL=2 100 10.
  • 6 Units MHz ns ns ns Clock Access Time 2 1. Terminated load. See AC Characteristics on page 37. 2. Unterminated load. See AC Characteristics on page 37. 3. tRP = tRCD = 2 CKs.
  • Multiple Burst R.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NT5SV16M16AT_Nanya.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NT5SV32M8AT
Manufacturer Nanya
File Size 840.91 KB
Description (NT5SVxxMxxAT) Synchronous DRAM
Datasheet download datasheet NT5SV32M8AT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NT5SV32M8BS (NT5SVxxMxxBx) 256Mb SDRAM Nanya Technology
NT5SV32M8BT (NT5SVxxMxxBx) 256Mb SDRAM Nanya Technology
NT5SV32M6CT (NT5SVxxMxxCT) 128Mb SDRAM Nanya Techology
NT5SV16M16BS (NT5SVxxMxxBx) 256Mb SDRAM Nanya Technology
NT5SV16M16BT (NT5SVxxMxxBx) 256Mb SDRAM Nanya Technology

Other Datasheets by Nanya

Part Number Description
NT5SV16M16AT (NT5SVxxMxxAT) Synchronous DRAM
NT5SV16M4DT (NT5SVxxMxxDT) 64Mb Synchronous DRAM
NT5SV4M16DT (NT5SVxxMxxDT) 64Mb Synchronous DRAM
NT5SV64M4AT (NT5SVxxMxxAT) Synchronous DRAM
NT5SV8M16FS 128Mb Synchronous DRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

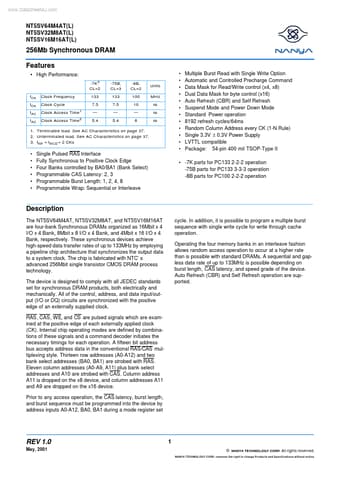

www.DataSheet4U.com NT5SV64M4AT(L) NT5SV32M8AT(L) NT5SV16M16AT(L) 256Mb Synchronous DRAM Features • High Performance: -7K 3 CL=2 fCK tCK tAC tAC Clock Frequency Clock Cycle Clock Access Time 1 133 7.5 — 5.4 -75B, CL=3 133 7.5 — 5.4 -8B, CL=2 100 10 — 6 Units MHz ns ns ns Clock Access Time 2 1. Terminated load. See AC Characteristics on page 37. 2. Unterminated load. See AC Characteristics on page 37. 3. tRP = tRCD = 2 CKs • • • • • • • • • • • • Multiple Burst Read with Single Write Option Automatic and Controlled Precharge Command Data Mask for Read/Write control (x4, x8) Dual Data Mask for byte control (x16) Auto Refresh (CBR) and Self Refresh Suspend Mode and Power Down Mode Standard Power operation 8192 refresh cycles/64ms Random Column Address every CK (1-N Rule) Single 3.
