NT5CB128M16BP, NT5CB512M4BN - 2Gb DDR3 SDRAM B-Die

Nanya

The NT5CB128M16BP by Nanya is a 2Gb DDR3 SDRAM B-Die. Below is the official datasheet preview.

Datasheet Details

Part number	NT5CB128M16BP, NT5CB512M4BN
Manufacturer	Nanya
File Size	2.38 MB
Description	2Gb DDR3 SDRAM B-Die
Datasheet	NT5CB512M4BN-Nanya.pdf
Note	This datasheet PDF includes multiple part numbers: NT5CB128M16BP, NT5CB512M4BN. Please refer to the document for exact specifications by model.

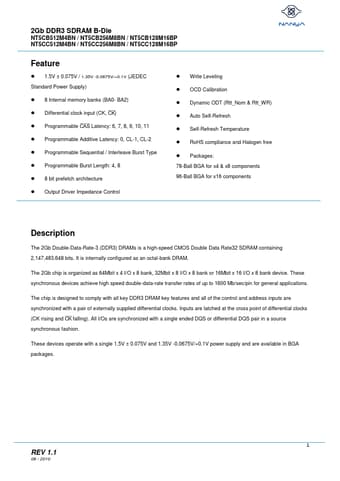

Additional preview pages of the NT5CB128M16BP datasheet.

The 2Gb Double-Data-Rate-3 (DDR3) DRAMs is a high-speed CMOS Double Data Rate32 SDRAM containing 2,147,483,648 bits.

and all of the control and address inputs are synchronized with a pair of externally supplied differential clocks. Inputs are latched at the cross point of differential clocks (CK rising and  falling). All I/Os are synchronized with a single ended DQS or differential DQS pair in a source synchronous fashion. These devices operate with a single 1.5V ± 0.075V and 1.35V -0.0675V/+0.1V power supply and are available in BGA packages. 1 REV 1.1 08 / 2010 2Gb DDR3 SDRAM B-Die NT5CB512M4BN / NT5CB2.
