NT5SV64M4BT

The NT5SV64M4BT is (NT5SVxxMxxBx) 256Mb SDRAM designed by Nanya Technology.

Product Overview

Nanya Technology

Datasheet Details

Part number	NT5SV64M4BT, NT5SV16M16BS
Manufacturer	Nanya Technology
File Size	2.78 MB
Description	(NT5SVxxMxxBx) 256Mb SDRAM
Datasheet	NT5SV16M16BS_NanyaTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: NT5SV64M4BT, NT5SV16M16BS. Please refer to the document for exact specifications by model.

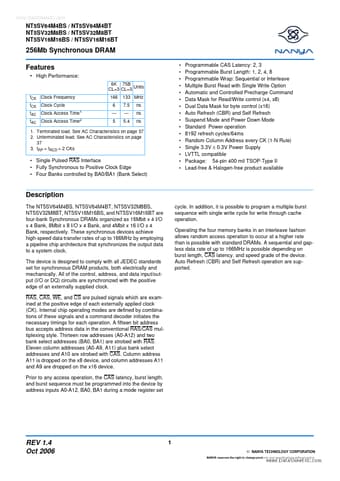

Additional preview pages of the NT5SV64M4BT datasheet.

Product details

Description

The NT5SV64M4BS, NT5SV64M4BT, NT5SV32M8BS, NT5SV32M8BT, NT5SV16M16BS, and NT5SV16M16BT are four-bank Synchronous DRAMs organized as 16Mbit x 4 I/O x 4 Bank, 8Mbit x 8 I/O x 4 Bank, and 4Mbit x 16 I/O x 4 Bank, respectively.

Features

High Performance: 6K 75B Units CL=3 CL=3 fCK tCK tAC tAC Clock Frequency Clock Cycle Clock Access Time1 Clock Access Time2 166 6.
5 133 MHz 7.5.
5.4 ns ns ns 1. Terminated load. See AC Characteristics on page 37 2. Unterminated load. See AC Characteristics on page 37 3. tRP = tRCD = 2 CKs.
Single Pulsed RAS Interface.
Fully Synchronous to Positive Clock Edge.
Four Banks controlled by BA0/BA1 (Bank Select).
