PMPB29XNE - single N-channel Trench MOSFET

NXP

The PMPB29XNE by NXP is a single N-channel Trench MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

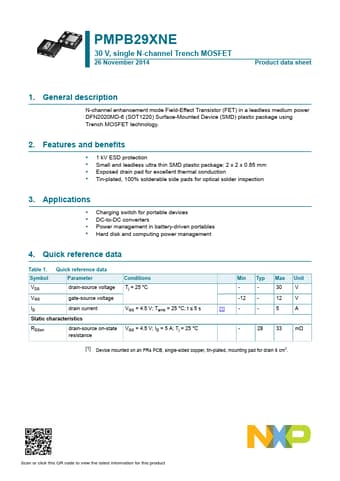

PMPB29XNE single N-channel Trench MOSFET by NXP - Datasheet Preview — Official preview page of the **PMPB29XNE** single N-channel Trench MOSFET datasheet (NXP).

Datasheet Details

Part number	PMPB29XNE
Manufacturer	NXP
File Size	256.62 KB
Description	single N-channel Trench MOSFET
Datasheet	PMPB29XNE-NXP.pdf
Additional preview pages of the PMPB29XNE datasheet.

PMPB29XNE Product details

Description

N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Features

1 kV ESD protection.
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm.
Exposed drain pad for excellent thermal conduction.
Tin-plated, 100% solderable side pads for optical solder inspection 3.
