IL610 - (IL610 - IL614) Passive Input Digital Isolators

NVE

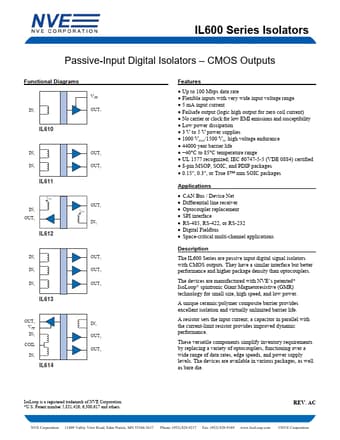

IL610 Datasheet Preview — Preview of IL610 PDF

Datasheet Details

Part number	IL610
Manufacturer	NVE
File Size	470.50 KB
Description	(IL610 - IL614) Passive Input Digital Isolators
Datasheet	IL610_NVE.pdf

IL610 Product details

Description

The IL600 series are isolated signal couplers with CMOS or open drain transistor outputs which can be used to replace opto-couplers in many standard isolation functions.

Features

40 Mbps Data Rate Very Wide Input Voltage Range Open Drain or CMOS Outputs Failsafe Output (Logic high output for zero coil current ) Output Enable 3.3 V or 5 V Power Supply 2500 VRMS Isolation (1 Minute) Low Power Dissipation -40°C to 85°C Temperature Range 20 kV/µs Typical Common Mode Rejection UL1577 & IEC61010 Approval (pending) Available in MSOP, SOIC, and PDIP Packages an.
