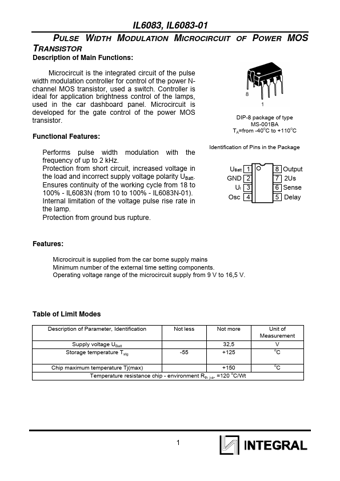

Description
of Main Functions:
Microcircuit is the integrated circuit of the pulse width modulation controller for control of the power Nchannel MOS transistor, used a switch.Controller is ideal for application brightness control of the lamps, used in the car dashboard panel.Microcircuit is developed for the gate control of the power MOS transistor.Functional
Features
- Performs pulse width modulation with the frequency of up to 2 kHz. Protection from short circuit, increased voltage in the load and incorrect supply voltage polarity UBatt. Ensures continuity of the working cycle from 18 to 100% - IL6083N (from 10 to 100% - IL6083N-01). Internal limitation of the voltage pulse rise rate in the lamp. Protection from ground bus rupture. DIP-8 package of type MS-001BA
TA=from -40oC to +110oC
Identification of Pins in the Package
UBatt 1 GND 2
UI 3 Osc 4
8 Outpu.
