IL6083 - PULSE WIDTH MODULATION MICROCIRCUIT OF POWER MOS TRANSISTOR

Integral

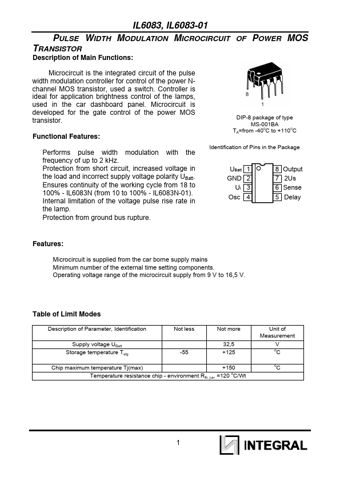

IL6083 Datasheet Preview — Preview of IL6083 PDF

Datasheet Details

Part number	IL6083
Manufacturer	Integral
File Size	97.33 KB
Description	PULSE WIDTH MODULATION MICROCIRCUIT OF POWER MOS TRANSISTOR
Datasheet	IL6083-Integral.pdf

IL6083 Product details

Description

of Main Functions: Microcircuit is the integrated circuit of the pulse width modulation controller for control of the power Nchannel MOS transistor, used a switch.Controller is ideal for application brightness control of the lamps, used in the car dashboard panel.Microcircuit is developed for the gate control of the power MOS transistor.Functional

Features

Performs pulse width modulation with the frequency of up to 2 kHz. Protection from short circuit, increased voltage in the load and incorrect supply voltage polarity UBatt. Ensures continuity of the working cycle from 18 to 100% - IL6083N (from 10 to 100% - IL6083N-01). Internal limitation of the voltage pulse rise rate in the lamp. Protection from ground bus rupture. DIP-8 package of type MS-001BA TA=from -40oC to +110oC Identification of Pins in the Package UBatt 1 GND 2 UI 3 Osc 4 8 Outpu.
