NES2427P-45 45 W S-BAND PUSH-PULL POWER GaAs MES FET

NES2427P-45 Description

PRELIMINARY DATA SHEET N-CHANNEL GaAs MES FET NES2427P-45 45 W S-BAND PUSH-PULL POWER GaAs MES FET .
The NES2427P-45 is a 45 W push-pull type GaAs MES FET designed for high power transmitter applications for WLL repeater and base station systems.

NES2427P-45 Features

* Push-pull type N-channel GaAs MES FET
* VDS = 12.0 V operation
* High output power: Pout = 45 W TYP.
* High linear gain: GL = 11 dB TYP.
* High power added efficiency: ηadd = 41 % TYP. @ VDS = 12.0 V, IDset = 4.0 A (total), f = 2.70 GHz ORDERING INFORMATION

NES2427P-45 Applications

* for WLL repeater and base station systems. It is capable of delivering 45 W of output power (CW) with high linear gain, high efficiency and excellent distortion under the condition of 12 V operation. Its primary band is 2.4 to 2.7 GHz. The device employs 0.9 µm Tungsten Silicide gates, via holes, pl

📥 Download Datasheet

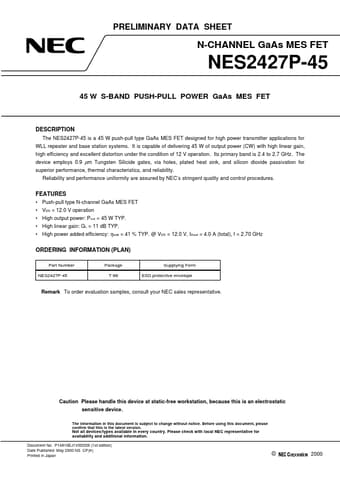

Preview of NES2427P-45 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NES2427P-45
Manufacturer
NEC
File Size
46.27 KB
Datasheet
NES2427P-45_NEC.pdf
Description
45 W S-BAND PUSH-PULL POWER GaAs MES FET
