NES1823P-140 140 W L / S-BAND PUSH-PULL POWER GaAs MES FET

NES1823P-140 Description

PRELIMINARY DATA SHEET N-CHANNEL GaAs MES FET NES1823P-140 140 W L, S-BAND PUSH-PULL POWER GaAs MES FET .
The NES1823P-140 is a 140 W push-pull type GaAs MES FET designed for high power transmitter applications for PCS, DCS, PHS and IMT2000 base station sy.

NES1823P-140 Features

* Push-pull type N-channel GaAs MES FET
* VDS = 12.0 V operation
* High output power: Pout = 140 W TYP.
* High linear gain: GL = 11 dB TYP.
* High power added efficiency: ηadd = 43 % TYP. @ VDS = 12.0 V, IDset = 6.0 A (total), f = 2.20 GHz ORDERING INFORMATIO

NES1823P-140 Applications

* for PCS, DCS, PHS and IMT2000 base station systems. It is capable of delivering 140 W of output power (CW) with high linear gain, high efficiency and excellent distortion under the condition of 12 V operation. Its primary band is 1.8 to 2.3 GHz, however with different matching, 60 MHz or less of ins

📥 Download Datasheet

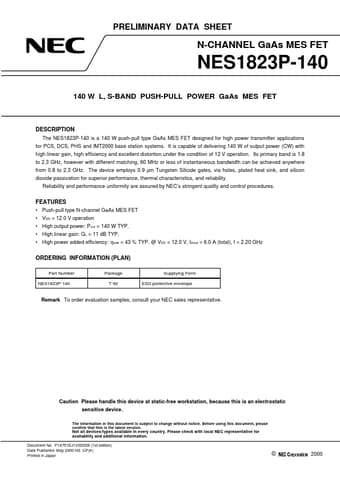

Preview of NES1823P-140 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NES1823P-140
Manufacturer
NEC
File Size
47.61 KB
Datasheet
NES1823P-140_NEC.pdf
Description
140 W L / S-BAND PUSH-PULL POWER GaAs MES FET
