NES1823P-30 30 W L-S BAND PUSH-PULL POWER GaAs MES FET

NES1823P-30 Description

PRELIMINARY DATA SHEET N-CHANNEL GaAs MES FET NES1823P-30 30 W L-S BAND PUSH-PULL POWER GaAs MES FET .
The NES1823P-30 is a 30 W push-pull type GaAs MES FET designed for high power transmitter applications for PCS, DCS and IMT 2000 base station systems.

NES1823P-30 Features

* Push-pull type N-channel GaAs MES FET
* High output power
* High linear gain : 30 W TYP. : 13 dB TYP.
* High power added efficiency : 40 % TYP. @VDS = 10 V, IDset = 4 A, f = 2.2 GHz ORDERING INFORMATION (PLAN) Part Number NES1823P-30 T-86 Package Supplying Form

NES1823P-30 Applications

* for PCS, DCS and IMT 2000 base station systems. It is capable of delivering 30 watts of output power (CW) with high linear gain, high efficiency and excellent distortion. Its primary band is 1.8 to 2.3 GHz, however with different matching, 60 MHz or less of instantaneous bandwidth can be achieved an

📥 Download Datasheet

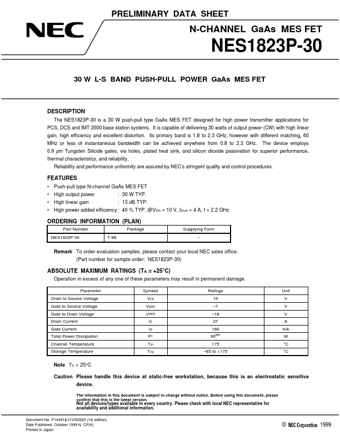

Preview of NES1823P-30 PDF
