NE32484A-T1A C to Ku BAND SUPER LOW NOISE AMPLIFIER N-CHANNEL HJ-FET

NE32484A-T1A Description

DATA SHEET HETERO JUNCTION FIELD EFFECT TRANSISTOR NE32484A C to Ku BAND SUPER LOW NOISE AMPLIFIER N-CHANNEL HJ-FET .
The NE32484A is a Hetero Junction FET that utilizes the hetero junction to create high mobility electrons.

NE32484A-T1A Features

* Super Low Noise Figure & High Associated Gain
* Gate Length : Lg ≤ 0.25 µm
* Gate Width : Wg = 200 µm 1.78 ±0.2 NF = 0.6 dB TYP. , Ga = 11.0 dB TYP. at f = 12 GHz T 2 L 3 L 4 ORDERING INFORMATION SUPPLYING FORM STICK Tape & reel 1000 pcs. /reel NE32484A-T1A Tape & reel 500

📥 Download Datasheet

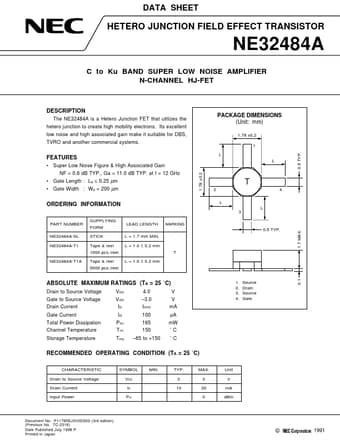

Preview of NE32484A-T1A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NE32484A-T1A
Manufacturer
NEC
File Size
63.80 KB
Datasheet
NE32484A-T1A_NEC.pdf
Description
C to Ku BAND SUPER LOW NOISE AMPLIFIER N-CHANNEL HJ-FET
