DSP56F805 - 16-bit Hybrid Controller

Motorola Inc

The DSP56F805 by Motorola Inc is a 16-bit Hybrid Controller. Below is the official datasheet preview.

📥 Download Datasheet

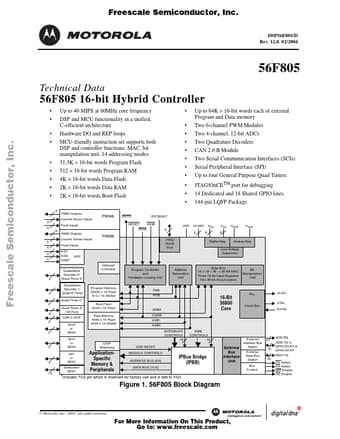

DSP56F805 16-bit Hybrid Controller by Motorola Inc - Datasheet Preview — Official preview page of the **DSP56F805** 16-bit Hybrid Controller datasheet (Motorola Inc).

Datasheet Details

Part number	DSP56F805
Manufacturer	Motorola Inc
File Size	967.20 KB
Description	16-bit Hybrid Controller
Datasheet	DSP56F805_MotorolaInc.pdf
Additional preview pages of the DSP56F805 datasheet.

DSP56F805 Product details

Description

Two General Purpose Quad Timers totaling six pins: Timer C with two pins and Timer D with four pins CAN 2.0 B Module with 2-pin port for transmit and receive Two Serial Communication Interfaces, each with two pins (or four additional GPIO lines) Serial Peripheral Interface (SPI) with configurable four-pin port (or four additional GPIO lines) 14 dedicated General Purpose I/O (GPIO) pins, 18 multiplexed GPI

Features

1.1.1.
Digital Signal Processing Core Efficient 16-bit 56800 family hybrid controller engine with dual Harvard architecture As many as 40 Million Instructions Per Second (MIPS) at 80MHz core frequency Single-cycle 16 × 16-bit parallel Multiplier-Accumulator (MAC) Two 36-bit accumulators, including extension bits 16-bit bidirectional barrel shifter Parallel instruction set with unique DSP addressing modes Hardware DO and REP loops Three internal a.
