DSP56F801 - 16-bit Digital Signal Processor

Motorola Inc

The DSP56F801 by Motorola Inc is a 16-bit Digital Signal Processor. Below is the official datasheet preview.

📥 Download Datasheet

DSP56F801 16-bit Digital Signal Processor by Motorola Inc - Datasheet Preview — Official preview page of the **DSP56F801** 16-bit Digital Signal Processor datasheet (Motorola Inc).

Datasheet Details

Part number	DSP56F801
Manufacturer	Motorola Inc
File Size	684.23 KB
Description	16-bit Digital Signal Processor
Datasheet	DSP56F801_MotorolaInc.pdf

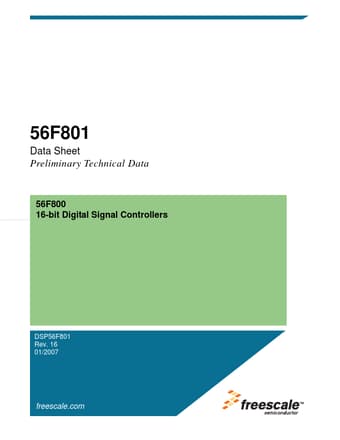

Additional preview pages of the DSP56F801 datasheet.

DSP56F801 Product details

Description

Up to 30 MIPS operation at 60MHz core frequency Up to 40 MIPS operation at 80MHz core frequency DSP and MCU functionality in a unified, C-efficient architecture MCU-friendly instruction set supports both DSP and controller functions: MAC, bit manipulation unit, 14 addressing modes Hardware DO and REP loops 6-channel PWM Module Two 4-channel, 12-bit ADCs Serial Communications Interface (SCI) Serial Periphera

Features

1.1.1.
www. DataSheet4U. com Digital Signal Processing Core Efficient 16-bit 56800 family controller engine with dual Harvard architecture As many as 40 Million Instructions Per Second (MIPS) at 80MHz core frequency Single-cycle 16 × 16-bit parallel Multiplier-Accumulator (MAC) Two 36-bit accumulators including extension bits 16-bit bidirectional barrel shifte.
