DSP56F803 - 16-bit Hybrid Controller

Motorola Inc

The DSP56F803 by Motorola Inc is a 16-bit Hybrid Controller. Below is the official datasheet preview.

📥 Download Datasheet

DSP56F803 16-bit Hybrid Controller by Motorola Inc - Datasheet Preview — Official preview page of the **DSP56F803** 16-bit Hybrid Controller datasheet (Motorola Inc).

Datasheet Details

Part number	DSP56F803
Manufacturer	Motorola Inc
File Size	947.96 KB
Description	16-bit Hybrid Controller
Datasheet	DSP56F803_MotorolaInc.pdf

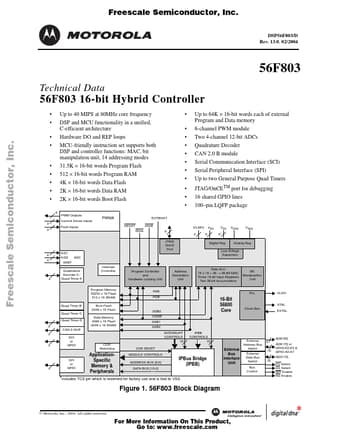

Additional preview pages of the DSP56F803 datasheet.

DSP56F803 Product details

Description

Four General Purpose Quad Timers: Timer A (sharing pins with Quad Dec0), Timers B &C without external pins and Timer D with two pins CAN 2.0 B module with 2-pin ports for transmit and receive Serial Communication Interface (SCI) with two pins (or two additional GPIO lines) Serial Peripheral Interface (SPI) with configurable 4-pin port (or four additional GPIO lines) Computer Operating Properly (COP) Watch

Features

1.1.1.
Digital Signal Processing Core Efficient 16-bit 56800 family hybrid controller engine with dual Harvard architecture As many as 40 Million Instructions Per Second (MIPS) at 80MHz core frequency Single-cycle 16 × 16-bit parallel Multiplier-Accumulator (MAC) Two 36-bit accumulators, including extension bits 16-bit bidirectional barrel shifter Parallel instruction set with unique DSP addressing modes Hardware DO and REP loops Three internal a.
