DSP56F802 - DSP56F802 16-bit Digital Signal Processor

Motorola Inc

The DSP56F802 by Motorola Inc is a DSP56F802 16-bit Digital Signal Processor. Below is the official datasheet preview.

📥 Download Datasheet

DSP56F802 DSP56F802 16-bit Digital Signal Processor by Motorola Inc - Datasheet Preview — Official preview page of the **DSP56F802** DSP56F802 16-bit Digital Signal Processor datasheet (Motorola Inc).

Datasheet Details

Part number	DSP56F802
Manufacturer	Motorola Inc
File Size	386.17 KB
Description	DSP56F802 16-bit Digital Signal Processor
Datasheet	DSP56F802_MotorolaInc.pdf

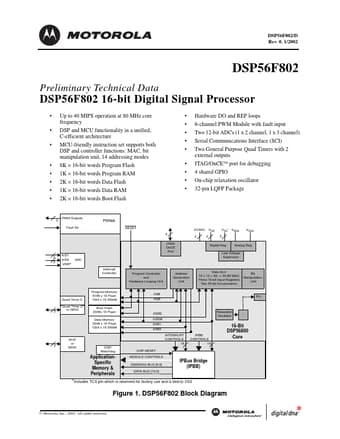

Additional preview pages of the DSP56F802 datasheet.

DSP56F802 Product details

Description

Computer-Operating Properly (COP) watchdog timer External interrupts via GPIO Trimmable on-chip relaxation oscillator External reset pin for hardware reset JTAG/On-Chip Emulation (OnCE™) for unobtrusive, processor speed-independent debugging Software-programmable, Phase Lock Loop-based frequency synthesizer for the DSP core clock 1.1.4 Energy Information Fabricated in high-density CM

Features

1.1.1.
Digital Signal Processing Core Efficient 16-bit DSP56800 family DSP engine with dual Harvard architecture As many as 40 Million Instructions Per Second (MIPS) at 80 MHz core frequency Single-cycle 16 × 16-bit parallel Multiplier-Accumulator (MAC) Two 36-bit accumulators including extension bits 16-bit bidirectional barrel shifter Parallel instruction.
