ZL30145 SyncE (10 GbE) SONET/SDH Rate Conversion and Jitter Attenuator PLL

ZL30145 Description

ZL30145 SyncE (10 GbE) SONET/SDH Rate Conversion and Jitter Attenuator PLL Data Sheet .

ZL30145 Features

* Can be used in systems to support the requirements of ITU-T G.8262 for synchronous Ethernet Equipment slave Clocks (EEC option 1 and 2)
* Meets jitter generation requirements of Telcordia GR-253-CORE for OC-192, OC-48, OC-12 and OC-3 rates
* Meets jitter generation requirem

ZL30145 Applications

* ITU-T G.8262 Line Cards which support 1 GbE and 10 GbE interfaces
* SONET line cards up to OC-192
* SDH line cards up to STM-64 osci osco ref /N ref DPLL SONET/SDH/ Ethernet APLL diff apll_clk lock hold I2C/SPI JTAG Figure 1 - Simplified Functional Block Diagram

📥 Download Datasheet

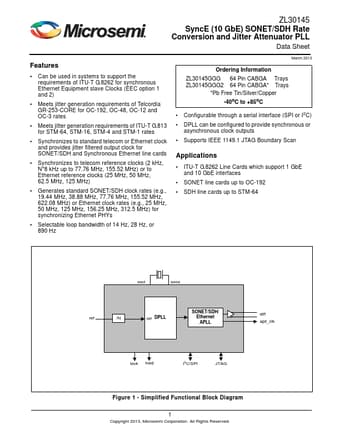

Preview of ZL30145 PDF
