MT29F2G08ABAFAWP, MT29F2G08ABAFAH4 - NAND Flash Memory

Name: MT29F2G08ABAFAWP
SKU: MT29F2G08ABAFAWP-1299590

Micron

The MT29F2G08ABAFAWP by Micron is a NAND Flash Memory. Below is the official datasheet preview.

Datasheet Details

Part number	MT29F2G08ABAFAWP, MT29F2G08ABAFAH4
Manufacturer	Micron
File Size	1.27 MB
Description	NAND Flash Memory
Datasheet	MT29F2G08ABAFAH4-Micron.pdf
Note	This datasheet PDF includes multiple part numbers: MT29F2G08ABAFAWP, MT29F2G08ABAFAH4. Please refer to the document for exact specifications by model.

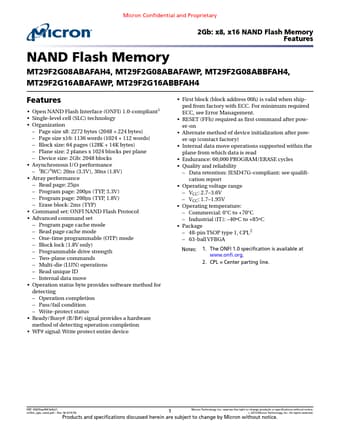

Additional preview pages of the MT29F2G08ABAFAWP datasheet.

NAND Flash Memory MT29F2G08ABAFAH4, MT29F2G08ABAFAWP, MT29F2G08ABBFAH4, MT29F2G16ABAFAWP, MT29F2G16ABBFAH4 Features.
Open NAND Flash Interface (ONFI) 1.0-compliant1.
Single-level cell (SLC) technology.
Organization.
Page size x8: 2272 bytes (2048 + 224 bytes).
Page size x16: 1136 words (1024 + 112 words).
Block size: 64 pages (128K + 14K bytes).
Plane size: 2 planes x 1024 blocks per plane.
Device size: 2Gb: 2048 blocks.
