MT29F2G08ABBEAH4, MT29F2G08ABAEAH4 - 2Gb NAND Flash Memory

Micron

The MT29F2G08ABBEAH4 by Micron is a 2Gb NAND Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

MT29F2G08ABBEAH4 2Gb NAND Flash Memory by Micron - Datasheet Preview — Official preview page of the **MT29F2G08ABBEAH4** 2Gb NAND Flash Memory datasheet (Micron).

Datasheet Details

Part number	MT29F2G08ABBEAH4, MT29F2G08ABAEAH4
Manufacturer	Micron
File Size	1.44 MB
Description	2Gb NAND Flash Memory
Datasheet	MT29F2G08ABAEAH4_Micron.pdf
Note	This datasheet PDF includes multiple part numbers: MT29F2G08ABBEAH4, MT29F2G08ABAEAH4. Please refer to the document for exact specifications by model.

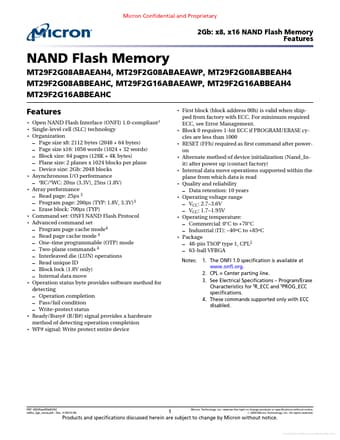

Additional preview pages of the MT29F2G08ABBEAH4 datasheet.

MT29F2G08ABBEAH4 Product details

Description

8 Signal Descriptions 8 Signal Assignments 9 Package Dimensions 12 Architecture 15 Device and Array Organization 16 Asynchronous Interface Bus Operation 18 Asynchronous Enable/Standby 18 Asynchronous Commands 18 Asynchronous Addresses 20 Asynchronous Data Input 21 Asynchronous Data Output 22 Write Protect# 23 Ready/Busy# 23 Device Initialization 28 Command Definitions 29 Reset Operations 32 RESET (FFh) 32 Identification Operations 33 READ ID (90h) 33 READ ID Parameter Tables

Features

NAND Flash Memory MT29F2G08ABAEAH4, MT29F2G08ABAEAWP, MT29F2G08ABBEAH4 MT29F2G08ABBEAHC, MT29F2G16ABAEAWP, MT29F2G16ABBEAH4 MT29F2G16ABBEAHC Features.
Open NAND Flash Interface (ONFI) 1.0-compliant1.
Single-level cell (SLC) technology.
Organization.
Page size x8: 2112 bytes (2048 + 64 bytes).
Page size x16: 1056 words (1024 + 32 words).
Block size: 64 pages (128K + 4K bytes).
Plane size: 2 planes x 1024 blocks per plane.
De.
