MAX9115

The MAX9115 is Single LVDS Line Receiver in SC70 designed by Maxim.

Product Overview

Maxim

Datasheet Details

Part number	MAX9115
Manufacturer	Maxim
File Size	139.13 KB
Description	Single LVDS Line Receiver in SC70
Datasheet	MAX9115_MaximIntegratedProducts.pdf

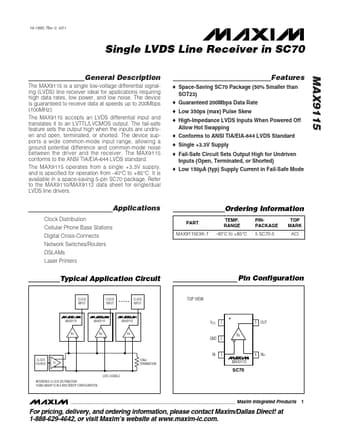

Additional preview pages of the MAX9115 datasheet.

Product details

Description

The MAX9115 is a single low-voltage differential signaling (LVDS) line receiver ideal for applications requiring high data rates, low power, and low noise.

Features

o Space-Saving SC70 Package (50% Smaller than SOT23) o Guaranteed 200Mbps Data Rate o Low 350ps (max) Pulse Skew o High-Impedance LVDS Inputs When Powered Off Allow Hot Swapping o Conforms to ANSI TIA/EIA-644 LVDS Standard o Single +3.3V Supply o Fail-Safe Circuit Sets Output High for Undriven Inputs (Open, Terminated, or Shorted) o Low 150µA (typ) Supply Current in Fail-Safe Mode MAX9115.
