MAX9101

The MAX9101 is +1.0V Micropower SOT23 Comparators designed by Maxim Integrated.

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX9101, MAX9100
Manufacturer	Maxim Integrated
File Size	182.80 KB
Description	+1.0V Micropower SOT23 Comparators
Datasheet	MAX9100_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX9101, MAX9100. Please refer to the document for exact specifications by model.

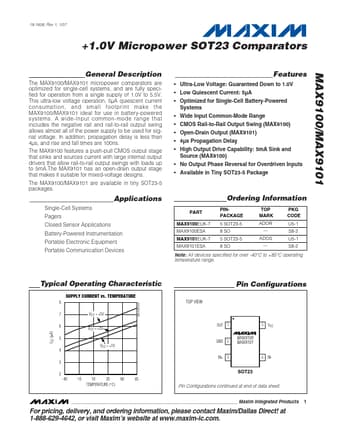

Additional preview pages of the MAX9101 datasheet.

Product details

Description

The MAX9100/MAX9101 micropower comparators are optimized for single-cell systems, and are fully specified for operation from a single supply of 1.0V to 5.5V.

Features

a push-pull CMOS output stage that sinks and sources current with large internal output drivers that allow rail-to-rail output swings with loads up to 5mA. The MAX9101 has an open-drain output stage that makes it suitable for mixed-voltage designs. The MAX9100/MAX9101 are available in tiny SOT23-5 packages. _______________.
