MAX9109

The MAX9109 is 25ns / Dual/Quad/Single / Low-Power / TTL Comparators designed by Maxim.

Product Overview

Maxim

Datasheet Details

Part number	MAX9109, MAX9107
Manufacturer	Maxim
File Size	432.73 KB
Description	25ns / Dual/Quad/Single / Low-Power / TTL Comparators
Datasheet	MAX9107_MaximIntegratedProducts.pdf
Note	This datasheet PDF includes multiple part numbers: MAX9109, MAX9107. Please refer to the document for exact specifications by model.

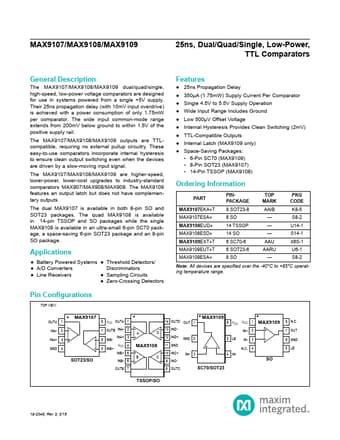

Additional preview pages of the MAX9109 datasheet.

Product details

Description

The MAX9107/MAX9108/MAX9109 dual/quad/single, high-speed, low-power voltage comparators are designed for use in systems powered from a single +5V supply.

Features

an output latch but does not have complementary outputs. The dual MAX9107 is available in both 8-pin SO and SOT23 packages. The quad MAX9108 is available in 14-pin TSSOP and SO packages while the single MAX9109 is available in an ultra-small 6-pin SC70 package, a space-saving 6-pin SOT23 package and an 8-pin SO package.
