MAX9111 - Single/Dual LVDS Line Receivers

Description

The MAX9111/MAX9113 single/dual low-voltage differential signaling (LVDS) receivers are designed for highspeed applications requiring minimum power consumption, space, and noise.

Features

  • o Low 300ps (max) Pulse Skew for High-Resolution Imaging and High-Speed Interconnect o Space-Saving 8-Pin SOT23 and SO Packages o Pin-Compatible Upgrades to DS90LV018A and DS90LV028A (SO Packages Only) o Guaranteed 500Mbps Data Rate o Low 29mW Power Dissipation at 3.3V o Conform to EIA/TIA-644 Standard o Single +3.3V Supply o Flow-Through Pinout Simplifies PC Board Layout o Fail-Safe Circuit Sets Output High for Undriven Inputs o High-Impedance LVDS Inputs when Powered Off MAX9111/MAX9113 ____.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX911 (MAX910 / MAX911) High SPeed Threshold Programmable Voltage Comparators Maxim Integrated Products
MAX9118 Beyond-the-Rails Comparators With/Without Reference Maxim Integrated
MAX9119 Beyond-the-Rails Comparators With/Without Reference Maxim Integrated
MAX910 (MAX910 / MAX911) High SPeed Threshold Programmable Voltage Comparators Maxim Integrated Products
MAX9101 +1.0V Micropower SOT23 Comparators Maxim Integrated

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
MAX9110 Single/Dual LVDS Line Drivers with Ultra-Low Pulse Skew in SOT23
MAX9112 Single/Dual LVDS Line Drivers with Ultra-Low Pulse Skew in SOT23
MAX9113 Single/Dual LVDS Line Receivers
MAX9115 Single LVDS Line Receiver in SC70
MAX9117 Beyond-the-Rails Comparators With/Without Reference

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

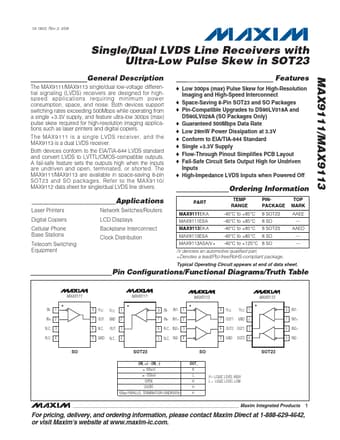

19-4802; Rev 0; 7/00 Single/Dual LVDS Line Receivers with Ultra-Low Pulse Skew in SOT23 General Description The MAX9111/MAX9113 single/dual low-voltage differential signaling (LVDS) receivers are designed for highspeed applications requiring minimum power consumption, space, and noise. Both devices support switching rates exceeding 500Mbps while operating from a single +3.3V supply, and feature ultra-low 300ps (max) pulse skew required for high-resolution imaging applications such as laser printers and digital copiers. The MAX9111 is a single LVDS receiver, and the MAX9113 is a dual LVDS receiver. Both devices conform to the EIA/TIA-644 LVDS standard and convert LVDS to LVTTL/CMOS-compatible outputs.
