MAX9112

The MAX9112 is Single/Dual LVDS Line Drivers with Ultra-Low Pulse Skew in SOT23 designed by Maxim.

Product Overview

Maxim

Datasheet Details

Part number	MAX9112
Manufacturer	Maxim
File Size	193.97 KB
Description	Single/Dual LVDS Line Drivers with Ultra-Low Pulse Skew in SOT23
Datasheet	MAX9112_MaximIntegratedProducts.pdf

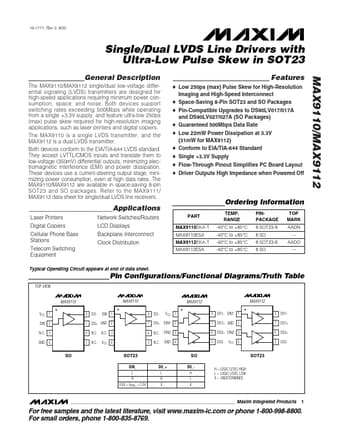

Additional preview pages of the MAX9112 datasheet.

Product details

Description

The MAX9110/MAX9112 single/dual low-voltage differential signaling (LVDS) transmitters are designed for high-speed applications requiring minimum power consumption, space, and noise.

Features

o Low 250ps (max) Pulse Skew for High-Resolution Imaging and High-Speed Interconnect o Space-Saving 8-Pin SOT23 and SO Packages o Pin-Compatible Upgrades to DS90LV017/017A and DS90LV027/027A (SO Packages) o Guaranteed 500Mbps Data Rate o Low 22mW Power Dissipation at 3.3V (31mW for MAX9112) o Conform to EIA/TIA-644 Standard o Single +3.3V Supply o Flow-Through Pinout Simplifies PC Board Layout o Driver Outputs High Impedance when Powered Off MAX9110/MAX9112 ________________________.
