The MAX9113 is Single/Dual LVDS Line Receivers designed by Maxim.

Product Overview

Maxim

Datasheet Details

Part number	MAX9113
Manufacturer	Maxim
File Size	108.30 KB
Description	Single/Dual LVDS Line Receivers
Datasheet	MAX9113_MaximIntegratedProducts.pdf

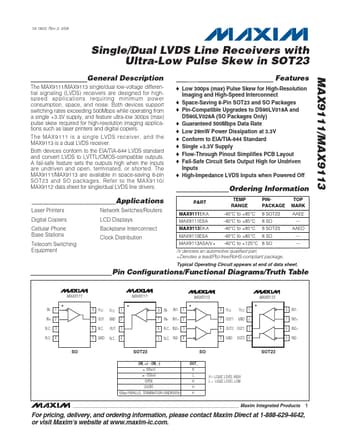

Additional preview pages of the MAX9113 datasheet.

Product details

Description

The MAX9111/MAX9113 single/dual low-voltage differential signaling (LVDS) receivers are designed for highspeed applications requiring minimum power consumption, space, and noise.

Features

o Low 300ps (max) Pulse Skew for High-Resolution Imaging and High-Speed Interconnect o Space-Saving 8-Pin SOT23 and SO Packages o Pin-Compatible Upgrades to DS90LV018A and DS90LV028A (SO Packages Only) o Guaranteed 500Mbps Data Rate o Low 29mW Power Dissipation at 3.3V o Conform to EIA/TIA-644 Standard o Single +3.3V Supply o Flow-Through Pinout Simplifies PC Board Layout o Fail-Safe Circuit Sets Output High for Undriven Inputs o High-Impedance LVDS Inputs when Powered Off MAX9111/MAX9113 ____.
