MAX9313 - (MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers

Product Overview

Maxim Integrated Products

Part number	MAX9313
Manufacturer	Maxim Integrated Products
File Size	408.97 KB
Description	(MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers
Datasheet	MAX9313 Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX9313, MAX9311. Please refer to the document for exact specifications by model.

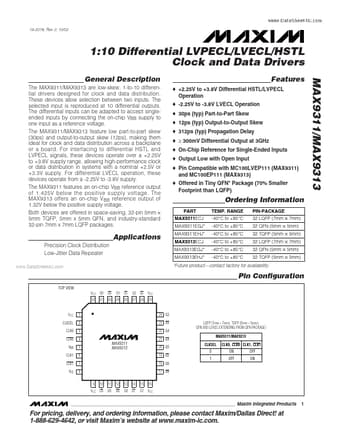

Additional preview pages of the MAX9313 datasheet.

The MAX9311/MAX9313 are low-skew, 1-to-10 differential drivers designed for clock and data distribution.

an on-chip VBB reference output of 1.425V below the positive supply voltage. The MAX9313 offers an on-chip V BB reference output of 1.32V below the positive supply voltage. Both devices are offered in space-saving, 32-pin 5mm ✕ 5mm TQFP, 5mm x 5mm QFN, and industry-standard 32-pin 7mm x 7mm LQFP packages. Features o +2.25V to +3.8V Differential HSTL/LVPECL Operation o -2.25V to -3.8V LVECL Operation o 30ps (typ) Part-to-Part Skew o 12ps (typ) Output-to-Output Skew o 312ps (typ) Propagation Dela.
