MAX9312 - (MAX9312 / MAX9314) Dual 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Drivers

Product Overview

Maxim Integrated Products

Part number	MAX9312
Manufacturer	Maxim Integrated Products
File Size	144.56 KB
Description	(MAX9312 / MAX9314) Dual 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Drivers
Datasheet	MAX9312 Datasheet

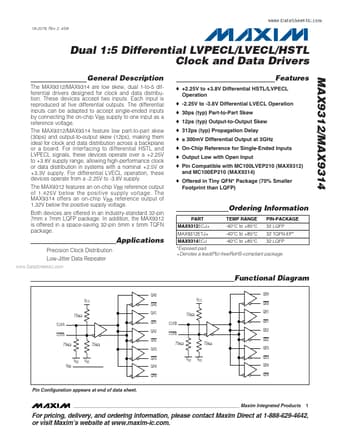

Additional preview pages of the MAX9312 datasheet.

The MAX9312/MAX9314 are low skew, dual 1-to-5 differential drivers designed for clock and data distribution.

an on-chip VBB reference output of 1.425V below the positive supply voltage. The MAX9314 offers an on-chip VBB reference output of 1.32V below the positive supply voltage. Both devices are offered in an industry-standard 32-pin 7mm x 7mm LQFP package. In addition, the MAX9312 is offered in a space-saving 32-pin 5mm x 5mm TQFN package. Features o +2.25V to +3.8V Differential HSTL/LVPECL Operation o -2.25V to -3.8V Differential LVECL Operation o 30ps (typ) Part-to-Part Skew o 12ps (typ) Output-to.
