MAX931 - Ultra Low-Power / Low-Cost Comparators

Product Overview

Maxim

Datasheet Details

Part number	MAX931
Manufacturer	Maxim
File Size	164.51 KB
Description	Ultra Low-Power / Low-Cost Comparators
Datasheet	MAX931 Datasheet

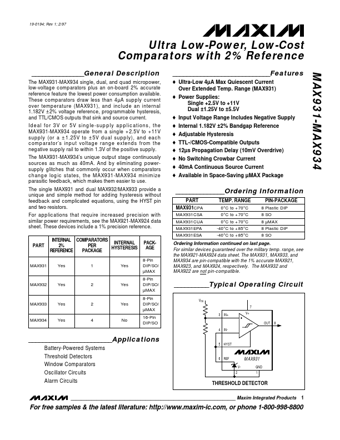

Additional preview pages of the MAX931 datasheet.

Product details

Description

The MAX931-MAX934 single, dual, and quad micropower, low-voltage comparators plus an on-board 2% accurate reference feature the lowest power consumption available.

Features

o Ultra-Low 4µA Max Quiescent Current Over Extended Temp. Range (MAX931) o Power Supplies: Single +2.5V to +11V Dual ±1.25V to ±5.5V o Input Voltage Range Includes Negative Supply o Internal 1.182V ±2% Bandgap Reference o Adjustable Hysteresis o TTL-/CMOS-Compatible Outputs o 12µs Propagation Delay (10mV Overdrive) o No Switching Crowbar Current o 40mA Continuous Source Current o Available in Space-Saving µMAX Package MAX931-MAX934 ______________Ordering Information PART MAX931CPA MAX931CSA MA.
