MMG300B120DKA6TC - 1200V 300A CHOPPER Module

MacMic

The MMG300B120DKA6TC by MacMic is a 1200V 300A CHOPPER Module. Below is the official datasheet preview.

📥 Download Datasheet

MMG300B120DKA6TC 1200V 300A CHOPPER Module by MacMic - Datasheet Preview — Official preview page of the MMG300B120DKA6TC 1200V 300A CHOPPER Module datasheet (MacMic).

Datasheet Details

Part number	MMG300B120DKA6TC
Manufacturer	MacMic
File Size	524.12 KB
Description	1200V 300A CHOPPER Module
Datasheet	MMG300B120DKA6TC-MacMic.pdf

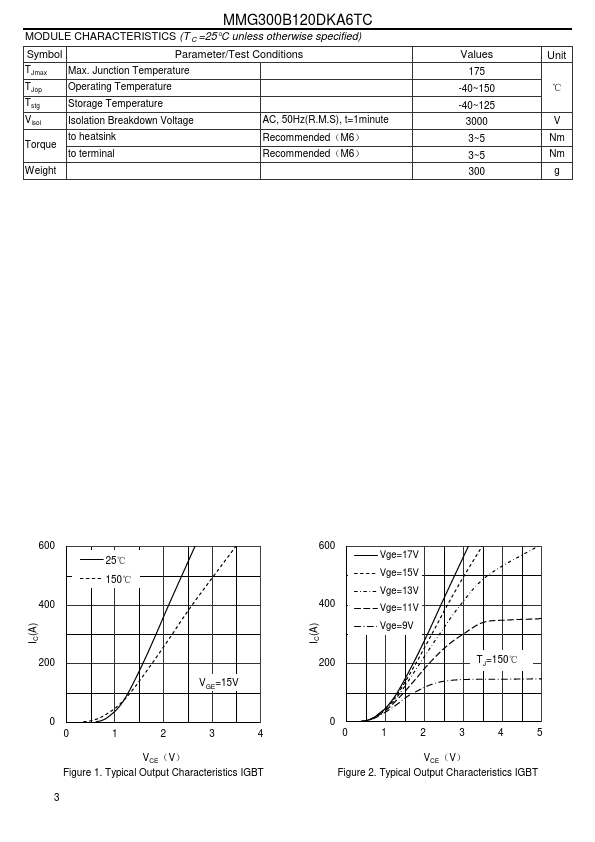

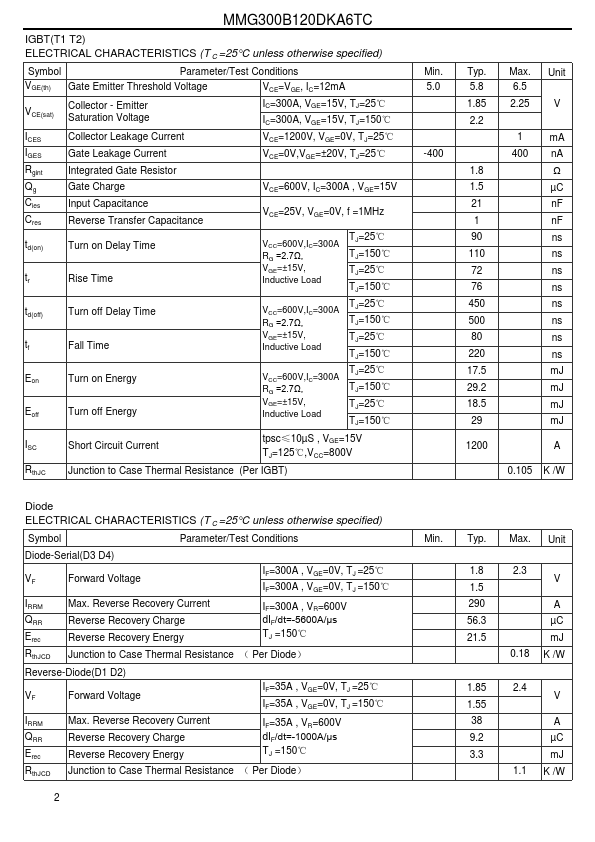

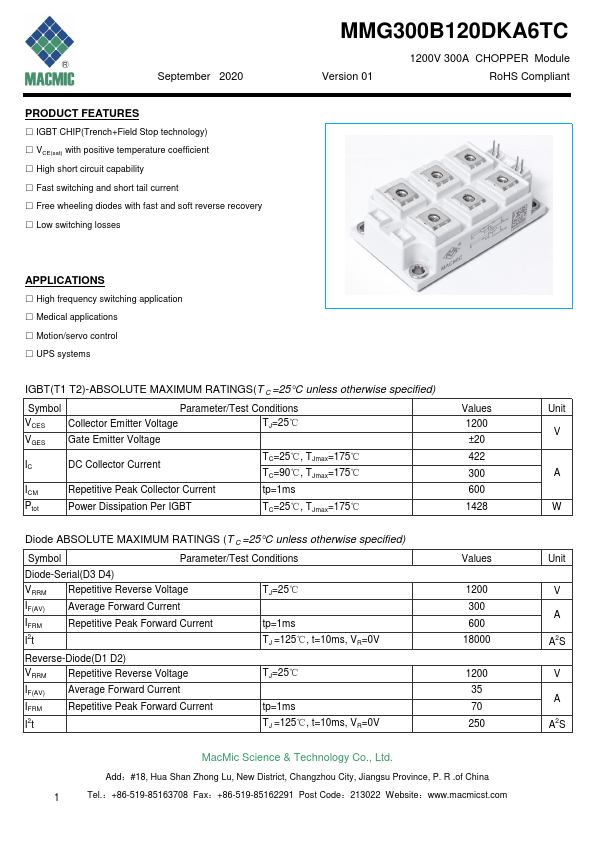

Additional preview pages of the MMG300B120DKA6TC datasheet.

MMG300B120DKA6TC Product details

Features

IGBT CHIP(Trench+Field Stop technology).
VCE(sat) with positive temperature coefficient.
High short circuit capability.
Fast switching and short tail current.
Free wheeling diodes with fast and soft reverse recovery.
Low switching losses MMG300B120DKA6TC Version 01 1200V 300A.
