MMG3006NT1 - Heterojunction Bipolar Transistor

Freescale Semiconductor

The MMG3006NT1 by Freescale Semiconductor is a Heterojunction Bipolar Transistor. Below is the official datasheet preview.

📥 Download Datasheet

MMG3006NT1 Heterojunction Bipolar Transistor by Freescale Semiconductor - Datasheet Preview — Official preview page of the **MMG3006NT1** Heterojunction Bipolar Transistor datasheet (Freescale Semiconductor).

Datasheet Details

Part number	MMG3006NT1
Manufacturer	Freescale Semiconductor
File Size	473.10 KB
Description	Heterojunction Bipolar Transistor
Datasheet	MMG3006NT1-FreescaleSemiconductor.pdf

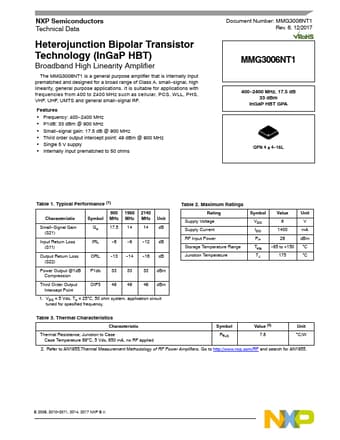

Additional preview pages of the MMG3006NT1 datasheet.

MMG3006NT1 Product details

Description

Name Pin Number Description VBA RFin 1 2, 3, 4 Bias voltage supply.RF input for the power amplifier.This pin is DC--coupled and requires a DC--blocking series capacitor.RFout/ VCC VCC GND 9, 10, 11, 12 16 Backside Center Metal RF output for the power amplifier.This pin is DC--coupled and requires a DC--blocking series capacitor.Collector voltage supply.The center metal base of the QFN package provides both DC and RF ground as well as heat sink contact for the power amplifier.VCC

Features

Frequency: 400--2400 MHz.
P1dB: 33 dBm @ 900 MHz.
Small--signal gain: 17.5 dB @ 900 MHz.
Third order output intercept point: 49 dBm @ 900 MHz.
Single 5 V supply.
Internally input prematched to 50 ohms Document Number: MMG3006NT1 Rev. 6, 12/2017 MMG3006NT1 400--2400 MHz, 17.5 dB 33 dBm InGaP HBT GPA QFN 4  4--16L Table 1. Typical Performance (1) Characteristic 900 1960 2140 Symbol MHz MHz MHz Unit Small--Signal Gain (S21) Gp 17.5 14 14 dB Input Return Loss (.
