MMG3003NT1, Heterojunction Bipolar Transistor

Pin Number Pin Function 1 RFin 2 Ground 3 RFout/DC Supply Table 6.

ESD Protection Characteristics Test Conditions/Test Methodology Human Body Model (per JESD 22 *A114) Machine Model (per EIA/JESD 22 *A115) Charge Device Model (per JESD 22 *C101) Table 7.

Moisture Sensit

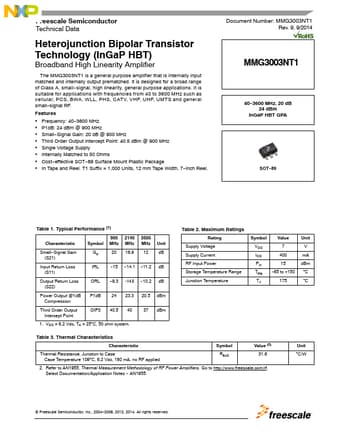

Freescale Semiconductor Technical Data Heterojunction Bipolar Transistor Technology (InGaP HBT) Broadband High Linearity Amplifier The MMG3003NT1 is a general purpose amplifier that is internally input matched and internally output prematched.

It is designed for a broad range of Class A, small signal, high linearity, general purpose applications.

It is suitable for applications with frequencies from 40 to 3600 MHz such as cellular, PCS, BWA, WLL, PHS, CATV, VHF, UHF, UMTS and general sma

MMG3003NT1 Features

* Frequency: 40

* 3600 MHz

* P1dB: 24 dBm @ 900 MHz

* Small

* Signal Gain: 20 dB @ 900 MHz

* Third Order Output Intercept Point: 40.5 dBm @ 900 MHz

* Single Voltage Supply

* Internally Matched to 50 Ohms

* Cost

* effective SOT

* 89 Surface Mount Pl
